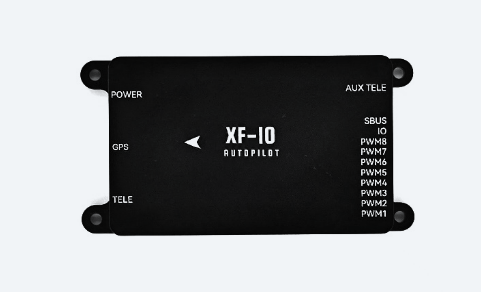

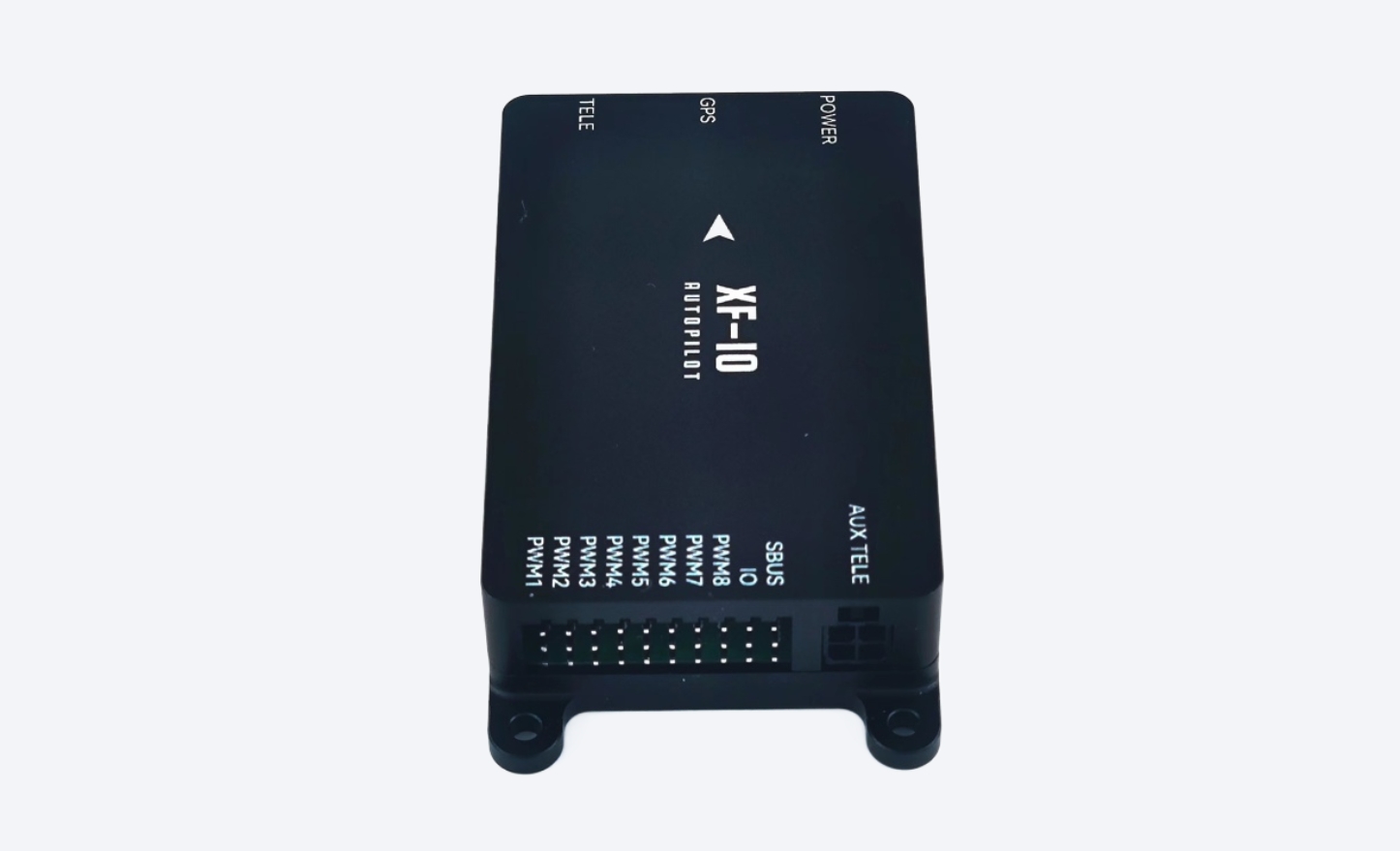

XF Series flight control - XF10
XF10 is the basic autopilot, suitable for conventional layout, flying wing, V-tail fixed wing aircraft, using GNSS guidance.
Innovation Creation Specialties Focus
Demand driven UAV navigation guidance and control system servicer.
Product Features
  • Suitable for conventional layout, flying wing, V-tail fixed wing aircraft.
  • Minimal pre-shooting preparation, solidified launch process, zero-base operation, support mobile APP control, to meet the needs of fast response.
  • Using GNSS guidance mode, two-point straight flight from launch point to target point.
  • Supports only ground speed flight, reducing airspeed calibration.
  • With GNSS signal loss protection, timeout without connection can control aircraft self-destruct, function can be disabled.
  • Electronic fence and no-fly zone can be customized, aircraft self-destruct can be controlled, function can be disabled.
  • No flight data recording function to ensure information security.
  • Low voltage, remote control signal loss, radio loss can continue to perform the task, no return event.
  • Configurable launch mode.
  • Configurable power and rudder starting logic.
  • With control parameter binding function.
  • Integrated GNSS/IMU navigation.
  • External magnetometer, support magnetic compass pre-installation calibration; navigation has self-alignment function, supports moving base alignment.
    • Survive by quality, develop by reputation, and continue to create value for customers
    Performance Parameters
    System Performance
    Attitude Accuracy RMS
    1°
    Heading Accuracy RMS
    2°
    Single Point Positioning Accuracy
    2.5m
    Single Point Velocity Accuracy
    0.1m/s
    Altitude Measurement Range
    <18000m
    Servomechanism/Motor Update Frequency
    ≤500Hz
    Servomechanism Power Supply
    Current ≤3A, unlimited voltage
    External Interface
    TTL
    3
    SBUS
    1
    PWM
    8
    IO
    1
    AD
    2
    Electrical Parameter
    Supply Voltage
    DC5±0.5V
    Power Consumption
    ＜1W
    Physical Parameter
    Dimension
    85.14mm×45mm×18mm
    Weight
    60.5g
    Environmental Parameter
    Operating Temperature
    -20℃~55℃
    Storage Temperature
    -40℃~85℃
