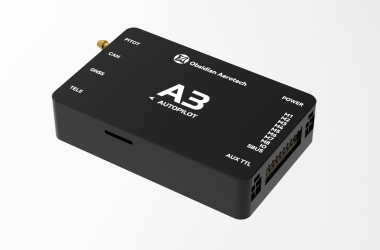

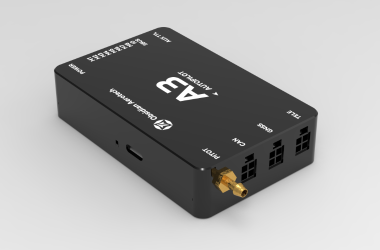

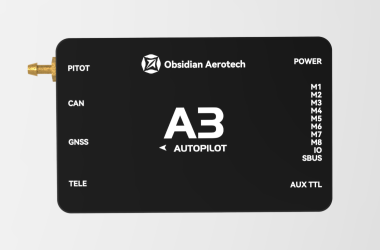

A Series flight control - A3
The A3 series flight control and navigation computer is suitable for light, small fixed-wing aircraft. It is highly integrated and cost-effective, with internal integration of magnetic compass, airspeed meter, barometer and external integration of GNSS/magnetic compass, with functions such as autonomous flight, safety protection and photo control.
Innovation Creation Specialties Focus
Demand driven UAV navigation guidance and control system servicer.
Product Features
  • Support for light, small fixed-wing aircraft.
  • Internal integration of integrated navigation and airspeed meter.
  • Support external differential GNSS, with RTK and dual antenna orientation function to improve positioning and orientation accuracy.
  • Support for external integrated GNSS/magnetic compass, easy to install in areas with low magnetic interference.
  • Fully autonomous flight control and photo control function.
  • Complete emergency protection mechanism, including low voltage, GNSS signal loss, remote control failure protection, etc. Electronic fence and emergency landing point can be set.
  • Support 10 routes, 1000 waypoints per route.
  • Internal integration data logger, support more than 10h data storage, support cyclic storage.
  • Ground station software supports online map, automatic route planning for non-regular areas, pre-flight check warning and in-flight warning function.
    • Survive by quality, develop by reputation, and continue to create value for customers
    Performance Parameters
    System Performance
    Attitude Accuracy RMS
    1°
    Heading Accuracy RMS
    2°
    Dual Antenna Orientation Accuracy RMS
    0.1°(1m baseline)
    Single Point Positioning Accuracy
    2.5m
    Single Point Velocity Accuracy
    0.1m/s
    RTK Positioning Accuracy
    0.8cm+1ppm(horizontal) 1.5cm+1ppm(altitude)
    Altitude Measurement Range
    <18000m
    Number of Routes
    10 (1000 waypoints for each)
    Data Logging
    10h cyclic storage
    Servo/Motor Update Frequency
    ≤500Hz
    External Interface
    TTL
    3
    CAN
    1
    SBUS
    1 (input)
    PWM
    8
    AD
    2
    IO
    1 (reusable as PWM)
    Electrical Parameter
    Supply Voltage
    DC5±0.5V
    Power Consumption
    ＜3.5W
    Physical Parameter
    Dimension
    89mmx57mmx28mm
    Weight
    173g
    Environmental Parameter
    Operating Temperature
    -20℃~55℃
    Storage Temperature
    -40℃~85℃
    Dual chip redundancy, reinforced structure design
