B Series flight control - B2

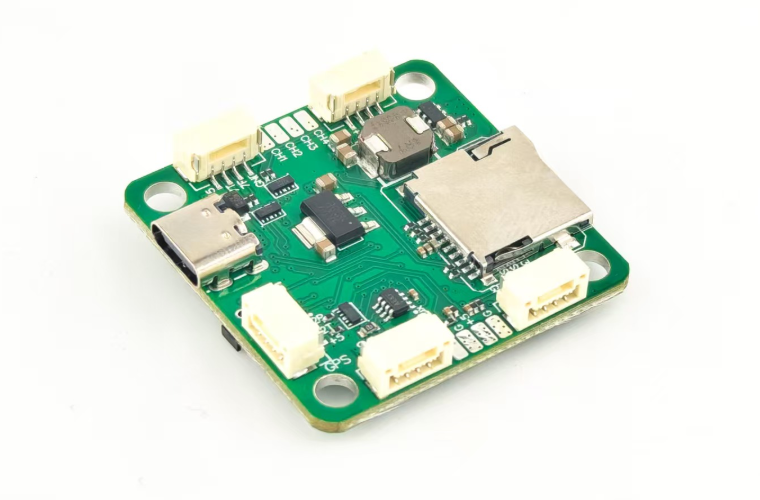

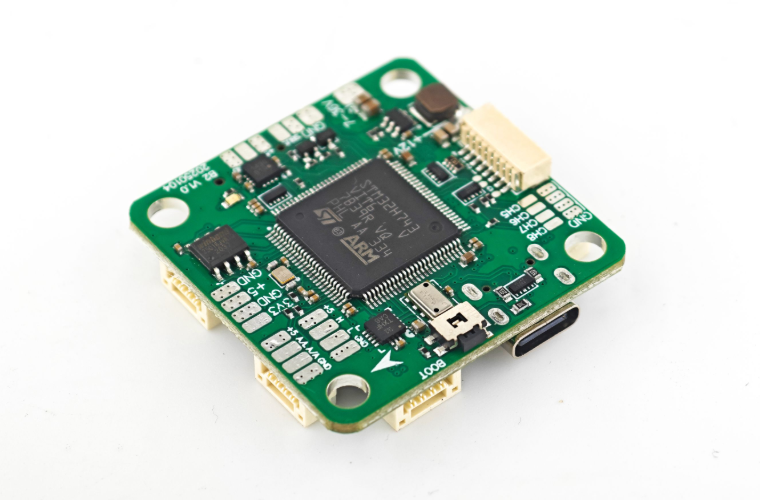

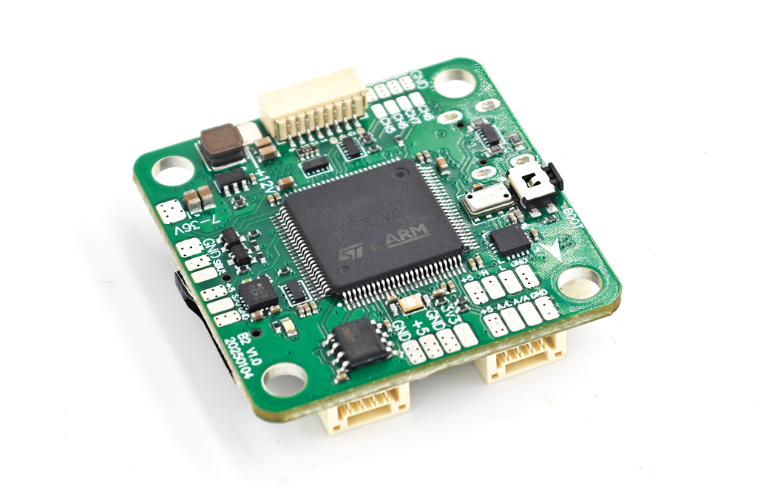

The B2 Flight Control and Navigation Computer is a flight control computer designed for FPV drones, suitable for 5-10 inch FPV drones and compatible with seeker pods. The product integrates industrial grade IMU, H743 main control, barometer, magnetic compass, and has functions such as autonomous flight, safety protection, and flight log recording.
Innovation Creation Specialties Focus
Demand driven UAV navigation guidance and control system servicer.
Product Features
  • Suitable for 5-10 inch FPV drones.
  • Supports external integrated GNSS/magnetic compass for easy installation in areas with low magnetic interference.
  • With fully autonomous flight system function.
  • Supports 10 routes, each route 1000 waypoints.
  • Complete emergency protection mechanism, including low power, GNSS signal loss, remote control failure protection, etc. Electronic fence can be set.
  • Ground station software supports online map, automatic planning of irregular regional routes, automatic planning of patrol lines, and pre-flight inspection warning and in-flight warning.
  • Support RTK real-time dynamic differential positioning system to achieve centimeter-level positioning; Supports dual antenna heading positioning.
  • Supports voltage monitoring.
  • Multi-sensor data fusion algorithm based on Kalman filter for accurate estimation of position and attitude.
  • Supports a variety of manual and autonomous flight modes.
  • Operating frequency of 480MHz.
  • Multi port direct insertion, easy to use and save soldering.
    • Survive by quality, develop by reputation, and continue to create value for customers
    Performance Parameters
    System Performance
    Attitude Accuracy RMS
    1°
    Heading Accuracy RMS
    2°
    Single Point Positioning Accuracy
    2.5m
    Single Point Velocity Accuracy
    0.1m/s
    Altitude Measurement Range
    <18000m
    Number of Routes
    10 (1000 waypoints for each)
    Servo/Motor Update Frequency
    50~500Hz
    External Interface
    TTL
    3
    SBUS
    1 (input), 1 (output)
    PWM
    8
    CAN
    1
    AD
    1
    5V/1A
    5
    12V/1A
    1
    3.3V/1A
    1
    Electrical Parameter
    Supply Voltage
    DC7~36V
    Power Consumption
    ＜6W
    Physical Parameter
    Dimension
    38mmx38mmx9mm
    Weight
    9.5g
    Environmental Parameter
    Operating Temperature
    -20℃~55℃
    Storage Temperature
    -40℃~85℃
