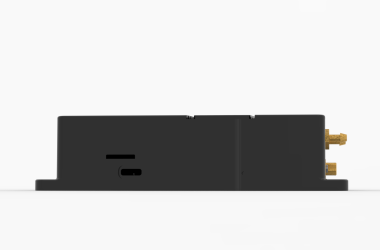

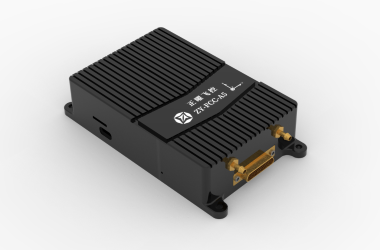

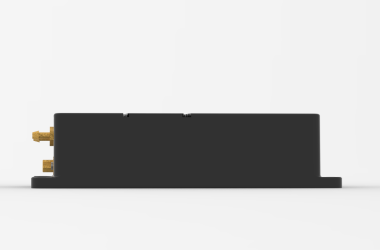

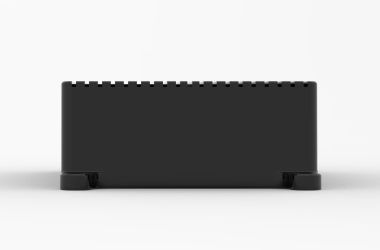

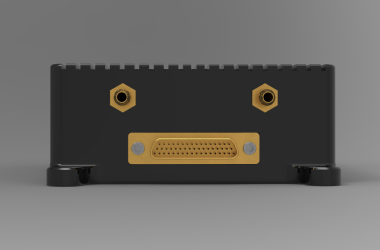

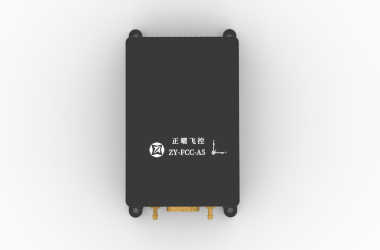

A Series flight control - A5
The A5 series flight control and navigation computer is suitable for medium-sized electric, oil powered fixed wing, vertical takeoff and landing, tilt rotor, multi rotor and other aircraft. It integrates GNSS/IMU integrated navigation, IMU3 redundant configuration, equipped with ADI high-precision IMU, and built-in shock absorbers for precise vibration filtering. It has a wide temperature range of -40℃~55℃ and uses J30 series connectors to effectively improve system reliability. It also supports optional pod guidance.
Innovation Creation Specialties Focus
Demand driven UAV navigation guidance and control system servicer.
Product Features
  • Suitable for medium electric, oil powered fixed wing, vertical take-off and landing, tilt-rotor, multi rotor and other aircraft.
  • Internally integrated with GNSS/IMU integrated navigation, barometric altimeter, airspeed meter, magnetic compass and other sensors, the IMU adopts a 3-redundant configuration and is equipped with ADI high-precision IMU sensors.
  • Support optional built-in differential GNSS module with RTK and dual antenna directional functions, improving positioning and directional accuracy, and being redundant with single point GNSS module.
  • Support external magnetic compass, easy to install in areas with less magnetic interference.
  • Support for automatic ignition control of the piston.
  • Fully autonomous flight control function.
  • Complete emergency protection mechanism, including low voltage, GNSS signal loss, remote control failure protection, etc. Electronic fence and emergency landing point can be set.
  • Support autonomous photo control, ground station can be configured to support photoelectric pod, open Pan&Tilt, servo Pan&Tilt control, support 10 routes, 1000 waypoints per route.
  • Built-in data logger, support more than 10h data storage, support cyclic storage.
  • Ground station software supports online map, automatic route planning for non-regular areas, pre-flight check warning and in-flight warning functions.
    • Survive by quality, develop by reputation, and continue to create value for customers
    Performance Parameters
    System Performance
    Attitude Accuracy RMS
    1°
    Heading Accuracy RMS
    2°
    Dual Antenna Orientation Accuracy RMS
    0.1°(1m baseline)
    Single Point Positioning Accuracy
    2.5m
    Single Point Velocity Accuracy
    0.1m/s
    RTK Positioning Accuracy
    0.8cm+1ppm(horizontal) 1.5cm+1ppm(altitude)
    Altitude Measurement Range
    <18000m
    Number of Routes
    10 (1000 waypoints for each)
    Data Logging
    10h cyclic storage
    Servo/Motor Update Frequency
    ≤500Hz
    External Interface
    TTL
    6
    RS232
    2
    CAN
    2
    SBUS
    1 (input), 1 (output)
    PWM
    16
    AD
    6
    IO
    2 (reusable as PWM)
    5V/1A
    2
    IO
    1
    Electrical Parameter
    Supply Voltage
    DC9~36V
    Actuator Supply Voltage
    DC5~6V
    Power Consumption
    ＜6W
    Physical Parameter
    Dimension
    110mmx80mmx32mm
    Weight
    400g
    Environmental Parameter
    Operating Temperature
    -40℃~55℃
    Storage Temperature
    -55℃~85℃
